We have a variety of vessel option to choose from our standard range. Beside the manufacturing of our Standard Vessels / Rectors, we specialize in producing reactors as per customer's requirement.
Reactor Options : Single Wall, Double wall or Triple Wall Glass Reactor
Operating Conditions
- Temperature:-50°C up to 180 °C
- Pressure : Full vacuum up to 0.5 bar
- Capacities : 100 ml L up to 10 L
Salient Features
- Glass Reactors made from Germany Raw Material.
- Lab Reactor system suitable for most benchtop fume hoods
- Stirrer with suitable mechanical seal/stuffing box/magnetic seal
- Skid Mounted and quick release clamp for easy installation & removable of glassware
- Suitable for vacuum condition
- Flush bottom with minimum dead volume
- Overhead Stirrer geared motor with built-in speed controller & display.
- Measurement Marking on the vessel.
- Interchangeable Stirrer anchor, propeller, turbine Digital temperature indicator
Optional
Hot water/oil circulator, Chiller, heating /Cooling system ,Vacuum Pump, PH probe with transmitter, Pressure Gauge.

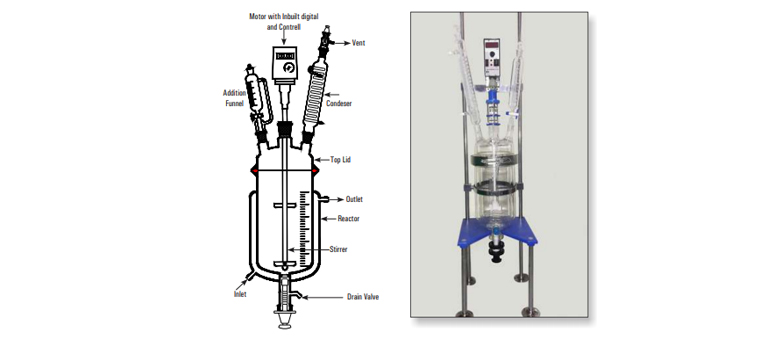

| Unit Cat.Ref. | Reactor Cap(L) | Gear Motor with Inbuilt Digital Indicator | Addition Funnel | Condenser Length | L x B x H |
|---|---|---|---|---|---|
| LJR 1L | 1 Ltr. (100DN) | Speed 40 - 400 RPM | 250ml | 200mm | 250 x 250 x 900 |
| LJR 2L | 2 Ltr. (100DN) | Speed 40 - 400 RPM | 500ml | 300mm | 250 x 250 x 1350 |
| LJR 3L | 3 Ltr. (100DN) | Speed 40 - 400 RPM | 500ml | 400mm | 250 x 250 x 1450 |
| LJR 5L | 5 Ltr. (100DN) | Speed 40 - 400 RPM | 1000ml | 500mm | 350 x 350 x 1450 |
| LJR 10L | 10 Ltr. (100DN) | Speed 40 - 400 RPM | 2000ml | 600mm | 400 x 400 x 1700 |
