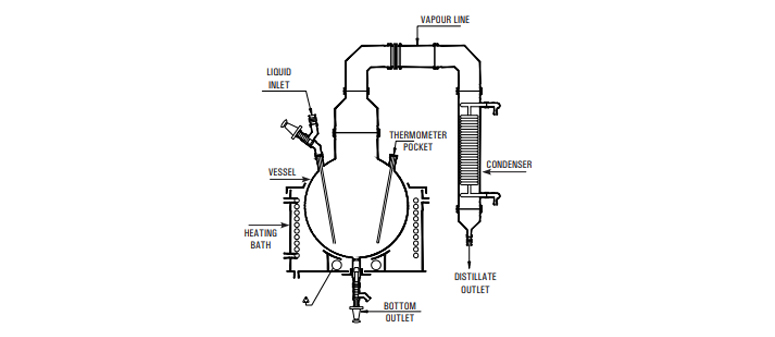

It consists of a vessel mounted in a heating bath and fitted with a condenser for condensing the vapours. A receiver with drain valve can be added for receiving the condensate
The units are available in vessel sizes of 20, 50, 100, 200, 300 & 500 L and is suitable for operation under atmospheric pressure and full vacuum.
| Unit Cat.Ref. | Reactor Capacity | Bath KW | Vapour Line | M2 |
|---|---|---|---|---|
| SDU20 | 20 L | 4.0 | 80 DN | 0.35 |
| SDU50 | 50 L | 6.0 | 100 DN | 0.50 |
| SDU100 | 100 L | 9.0 | 150 DN | 1.50 |
| SDU200 | 200 L | 12.0 | 150 DN | 1.50 |
| SDU300 | 300 L | 18.0 | 225 DN | 2.50 |
| SDU500 | 500 L | 24.0 | 300 DN | 4.00 |
