Glass Reactors are ideally used for wide applications in laboratory, pilot plant & for small-scale production. They reduce the need for investment in permanent installations & also reduce the pressure & temperature losses resulting from pipeline installation.

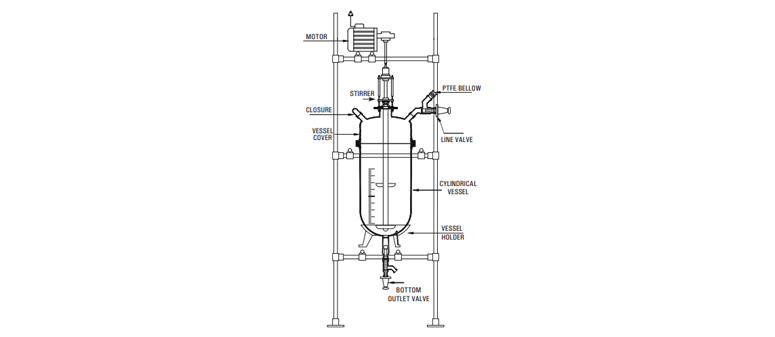

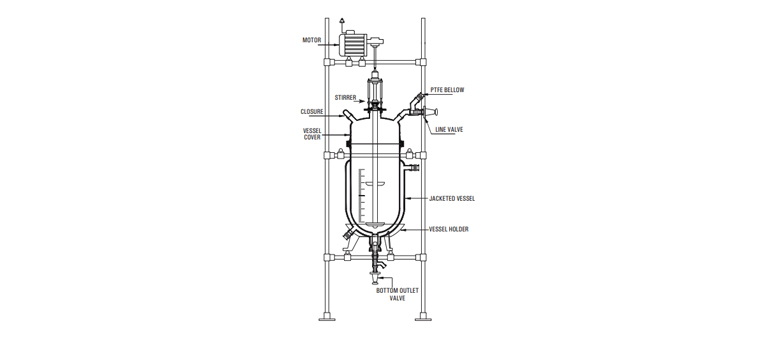

These reactors are available with spherical shape & in cylindrical shape. These reactors are also available in cylindrical jacketed form

The systems are available with different options, depending upon their size & their utility. Our Technical Department will glad to assist you in finding a suitable solution for your process requirement.

• Stirrer Drive: Non-Flameproof or Flameproof Motor, 192 RPM with speed regulator.
• Stirrer material of construction: Glass or PTFE Lined
• Stirrer shape: Glass Impeller Stirrer with PTFE Blades, Vortex Stirrer, propeller stirrer & anchor stirrer
• Stirring Assembly: Stirring Assembly with bellow seal or with mechanical seal.
• Supporting Structure : Carbon Steel, Epoxy coated Carbon Steel, Stainless Steel 304 & Stainless Steel 316. All structure are available in Trolley mounted form
• Closing Valve: Drain Valve or Flush Bottom Outlet Valve.
